Contractors and DIYers prefer copper for its durability, heat tolerance, and water quality benefits. When properly installed, copper fittings can remain in service for decades. This makes them a cost-effective choice for many projects.
This article will show you how to identify fittings based on size and function. We will also compare soldered connections with mechanical ones. You’ll learn how to find compatible parts through trusted suppliers like Installation Parts Supply. The goal is to give you straightforward advice for selecting the right plumbing fittings for your next project.
Copper Pipe Fittings: Overview And Why Choose Copper
Copper pipe fittings are a preferred choice for both residential and commercial plumbing. Because they combine strength, workability, and long-term reliability, they are ideal for many systems. This overview explains the main reasons plumbers and contractors choose copper for new installations and repairs.
Benefits of copper
Copper is well known for being both durable and malleable, allowing fittings like elbows and tees to be shaped without cracking. Its high heat tolerance makes it a strong choice for hot-water supply lines and boiler loops. It also has bacteriostatic properties, which can make potable water systems safer than some plastic alternatives. Copper can be joined by soldering, press systems, compression fittings, or push-fit methods, which adds flexibility to a project.
Longevity and corrosion resistance
Copper tubing can last between 70 to 80 years when installed correctly. Its surface oxidation forms a protective patina, limiting deeper corrosion and supporting its longevity and corrosion resistance. Quality material, proper fluxing, and clean joints are essential to prevent pinhole leaks and premature failure. Its service life can be extended even more through regular inspection and the use of properly matched fittings in supply lines and HVAC loops.
Applications Where Copper Outperforms Other Materials
Copper outperforms many alternative materials in hot-water systems, refrigeration lines, and high-pressure uses. For HVAC and refrigeration systems, pipe 5 8 and copper tube 5/8 are often used in refrigerant circuits for dependable performance under heat and pressure. Compared with PVC or PEX, copper fittings handle higher temperatures and stay rigid under stress. Compared with multilayer or composite pipes, copper is less vulnerable to impact damage and has a long, proven history in legacy systems.
| Attribute | Why Copper Excels | Typical Use |
|---|---|---|
| Durability | Strong tensile performance and wear resistance | Hot-water supply, boiler loops |
| Temperature tolerance | Handles high temperatures without softening | Water heaters and HVAC lines |
| Corrosion behavior | Forms protective patina that slows degradation | Long-run supply lines in homes |
| Connection methods | Soldering, brazing, compression, push-fit, and press methods | New installs and retrofit repairs |
| Common sizes | Includes pipe 5 8 and copper tube 5/8 for refrigeration | Refrigerant circuits, tight commercial runs |

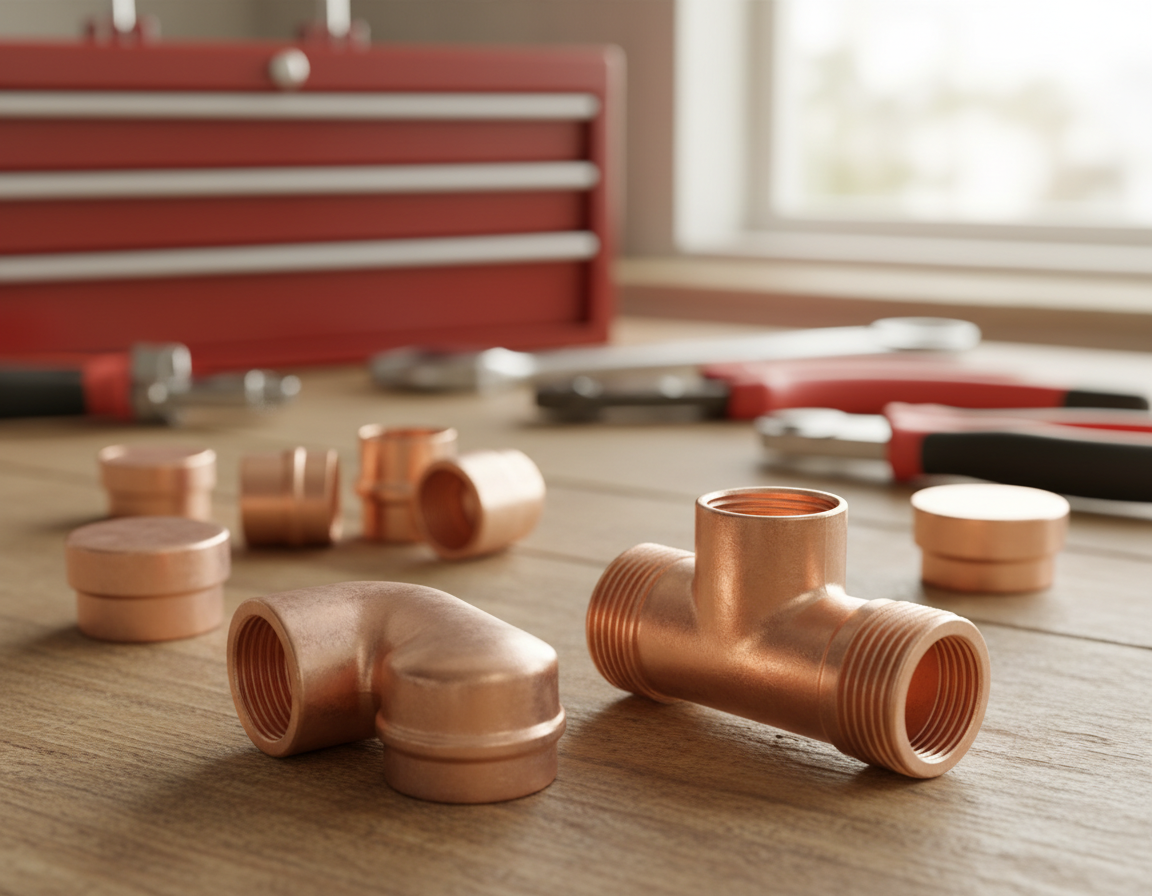

Common Types Of Copper Pipe Fittings Used For Supply Lines
Selecting the right copper fittings is essential for a successful project. Here we cover important fittings used in water supply lines, including those for directional changes and service access. When planning, remember to consider pipe size, connection style, and material compatibility.
Elbows, Tees, And Crosses: Changing Direction And Branching
Elbows are used at 90°, 45°, and 22.5° angles to direct flow around corners. They are especially useful when you need to route around obstacles or follow wall paths. For three-way connections, tees divide or combine flow and are often found in kitchens and bathrooms. Crosses connect four directions, ideal for where systems meet.
These fittings are available in several styles, including sweat/soldered, press, and compression. Choose the connection style that matches your copper pipe connectors and the installer’s experience level.
Couplings, Adapters, And Unions For Joining And Maintenance
Couplings are used to join two pieces of copper pipe with the same diameter. Reducing couplings handle different sizes. Adapters transition between materials or thread types, such as copper-to-brass or copper-to-PEX.
Unions allow for quick section separation for repairs or equipment service. They’re perfect for where a valve or fixture needs periodic removal. Make sure unions and adapters match the pipe OD or nominal size to avoid leaks.
Caps, Plugs, And Clean-Outs For Sealing And Access
Caps are used to seal the end of a line, while plugs thread into fittings to close off branches. Both are used for pressure testing and temporary terminations. Clean-outs provide access to drain lines for maintenance and blockage removal.
Select caps, plugs, and clean-outs that match the system material and pressure rating. Confirm whether the fitting size is referenced by nominal size, OD, or ID, because this is critical for 5 8 copper fittings and other sizes.
During project planning, ensure that copper pipe connectors, couplings, adapters, and unions all match the pipe type. This prevents fit issues and simplifies maintenance.
Compression And Push-To-Connect Copper Fittings
Compression and push-to-connect fittings streamline copper plumbing, making it faster and safer in many scenarios. These fittings are especially useful when a torch is not practical or when a fast repair is required. Below, we’ll explore how each system functions, their appropriate applications, and essential installation tips for 5/8 copper tube projects.
How Compression Fittings Create A Seal
Compression fittings form a seal by using a nut and a ferrule. As the nut tightens, the ferrule compresses around the tube, biting into the copper. This method forms a leak-resistant joint without the need for heat. These fittings are often used on supply lines and in repair work where a torch is impractical.
They are effective on a range of sizes, including 5 8 copper pipe fittings. When properly installed, they can be disassembled later, which makes them ideal for accessible valves and meter connections.
Push-To-Connect Fittings For Quick Installations
Also known as quick-connect fittings, push-to-connect copper fittings allow a deburred tube to be pushed into the body until it clicks into place. No solder, crimping, or special tools are required. Because of this simplicity, they are popular with DIYers and professionals working in tight spaces.
Common sizes, including 5/8 copper tube, are supported by these fittings. Many manufacturers publish pressure and temperature ratings for them. It’s essential to match the fitting to the tubing type and follow the manufacturer’s depth guidelines for reliable performance.
Why These Fittings Beat Solder In Some Jobs
Compression and push-fit copper fittings eliminate the need for a torch, flux, and open flame. This lowers fire risk in occupied buildings and speeds up retrofit work. They are also time-saving options for emergency repairs and installations in tight spaces.
Mechanical fittings can be more expensive per piece and may have lower temperature ratings than soldered joints, so that should be kept in mind. Before installing quick-connect fittings on hot-water or high-pressure lines, always check their ratings. When used correctly, these fittings offer a flexible, safe alternative to soldering in many plumbing applications.
Sweat And Soldered Fittings For Copper Pipe
Sweat connections form a strong bond between pipe and fitting, using flux and filler metal. By contrast, brazing uses higher heat and a filler metal that melts above 840°F. It is commonly used for HVAC and refrigeration joints. When done correctly, both methods create durable, long-lasting joints.
Overview Of Techniques
Sweat copper fittings rely on solder to fill the gap between the copper tube and the fitting. Because it uses a hotter flame and brazing rod, brazing copper pipe is better suited to joints that face higher temperatures and pressures. The choice between these methods depends on the system’s requirements and local regulations.
Tools and safety gear
The main tools include a tube cutter, a deburring tool, a wire brush or emery cloth, flux, solder or brazing rod, and a torch. Propane is commonly used for soldering, while brazing is better handled with MAPP or acetylene. Always wear safety shoes, an apron, heat-resistant gloves, a respirator or face mask, and protective goggles.
Step-by-step soldering tips
- Cut the copper tube 5/8 section squarely and deburr the edge for a smooth fit.
- Clean the fitting and pipe with a wire brush or emery cloth until bright copper shows.
- After applying flux to the cleaned surfaces, assemble the joint and twist it slightly to distribute the flux.
- Heat the fitting evenly with a surrounding flame. When brazing copper pipe, watch for a slight red tint as the temperature rises.
- Feed the solder or brazing rod into the joint and let capillary action pull the filler around the seam.
- Let the joint cool on its own, then remove any soot and flux residue using an appropriate cleaner.
When To Choose Soldered Fittings
Opt for copper solder fittings for a permanent, reliable joint in potable water systems and moderate temperatures. Brazing is better suited for HVAC or refrigeration where higher temperature resistance is needed. Make sure that any work on 5/8 copper tubing or copper tube 5/8 lines complies with manufacturer requirements and code rules for pressure compatibility.
Important Practical Considerations
Proper technique is essential if you want to avoid porosity and cold joints. Inspect each joint for full solder coverage and test systems under pressure before insulation or concealment. For many plumbing jobs, sweat copper fittings are a staple, while brazing copper pipe is best for demanding HVAC and refrigeration applications where durability is critical.
Specialty Copper Fittings For Refrigeration And HVAC
To move refrigerant safely, refrigeration and HVAC systems depend on precisely sized tubing and fittings. Materials and connection types are chosen by technicians based on pressure, access for service, and code rules. A good understanding of common fitting styles and sizes helps avoid leaks and maintenance headaches.
5/8 copper pipe is often used for liquid and suction lines in light commercial and residential systems. It’s important to confirm whether the spec refers to outside diameter (OD) or nominal size before ordering parts.
5 8 copper tube must match fittings sized for that outside diameter. Mismatched parts may create unsafe joints and poor seals. Manufacturer compatibility charts should be used when selecting copper pipe fittings refrigeration parts.
Uses For 5/8 Copper Pipe And 5/8 Refrigeration Tubing
Lines carrying refrigerant require consistent wall thickness and precise bends. For liquid lines and smaller suction runs, 5 8 copper refrigeration tubing is commonly suitable. Service valves, filter driers, and meters are often designed around the 5/8 OD copper tubing size.
Flare, Bite-Type, And Brazed Fittings Used On High-Pressure Refrigerant Lines
A flare fitting seals by compressing the flared end of a tube under a flare nut. Technicians use flare fittings where serviceability matters, such as access panels and gauges. For field service, flare joints can be tightened by hand.
When tightened, bite-type fittings use a ferrule that grips and bites into the tube wall. When flaring is difficult or space is tight, installers frequently choose bite-type fittings. These fittings are valued in mobile applications because they assemble quickly and resist vibration well.
Brazed fittings form metallurgical joints that are strong and leak-resistant. For HVAC systems exposed to high pressures or elevated temperatures, brazed connections are often required. For certain refrigerants and high-pressure circuits, codes and manufacturers may require brazing.
Sizing Notes For 5 8 Copper OD, ID, And Compatible Fittings
Be sure to confirm the difference between 5/8 od copper tubing and 5/8 id pipe before purchasing fittings. A 5/8 id pipe has a smaller OD than tubing labeled 5/8 OD. Checking both ID and OD helps prevent fitting mismatches and possible leaks.
| Characteristic | 5/8 OD Copper Tubing | 5/8 ID Pipe |
|---|---|---|
| Typical Use | Refrigerant liquid/suction lines, service connections | Rare for refrigerant lines, more common in plumbing |
| Compatible Fittings | Flare fittings, bite-type fittings, and brazed fittings rated for 5 8 copper tube | Threaded or compression fittings sized to inner-diameter plumbing standards |
| Installation notes | Check flare nut size and ferrule type before flaring or tightening | Measure OD when adapting to HVAC components to ensure fit |
| Pressure rating suitability | Suitable for high-pressure refrigerant circuits with the correct wall thickness | Varies by pipe class; often lower than refrigeration-rated tubing |
Choose parts by matching the tubing OD to the fitting specification, and select copper pipe fittings refrigeration products that specifically list compatibility with 5/8 od copper tubing. Keep a stock of flare fittings and bite-type fittings for field repairs. Use brazed fittings where codes or system pressure require permanent, high-strength joints.
Choosing The Right Copper Fitting: Sizing, Material, And Code Considerations
To choose the right copper fitting, you need accurate measurements and a clear understanding of performance ratings. It’s essential to read labels carefully to determine if they use outside diameter or nominal sizing. This step is critical to avoid leaks and ensure the fitting matches the system’s needs.
Many HVAC and refrigeration parts are measured by outside diameter. For example, 5 8 copper pipe od is a common size in refrigeration tubing. By contrast, residential plumbing often uses nominal sizing based on internal diameter. Before buying, always review the manufacturer’s notes for 5/8 in copper pipe sizing.
When matching fittings to pipe, verify if the tubing is described as 5 8 id tube or 5 8 od tubing. Different fitting types, including compression, sweat, flare, and brazed, require their own preparation steps and clearances. Choose the fitting method that matches the application and the required pressure level.
Material choice and joint type are determined by system pressure and temperature. For hot potable-water systems, high-temperature-rated soldered or press fittings are recommended. High-pressure refrigerant lines benefit from flare or brazed joints. Brass adapters work well when transitioning between copper and other metals.
Local plumbing codes also play a significant role. Before starting work, inspect local plumbing codes copper fittings requirements. Some jurisdictions require brazed joints for HVAC refrigerant systems or restrict mechanical fittings in concealed locations. To satisfy code and warranty standards, look for NSF/ANSI or UPC certifications.
To select the best copper fittings, purchase from trusted suppliers like Ferguson or Grainger and follow product instructions carefully. When there is any uncertainty, ask a licensed plumber or HVAC technician to confirm the correct fit and rating. This helps prevent expensive rework.
| Attribute | Common Marking | When to Use | Notes |
|---|---|---|---|
| Refrigeration tubing | 5 8 copper pipe OD | High-pressure refrigerant lines | Fittings usually sized by OD; use flare or brazed joints |
| Supply water tubing | 5/8 in copper pipe sizing, nominal | Residential water supply | Check whether the label refers to ID or nominal size |
| Compression fitting style | Marked by tube OD or nominal ID | Retrofit work and quick repairs | Good for low-to-moderate pressure; follow torque specs |
| Sweat or soldered fittings | Often listed by nominal size | Hot water, durable joints | Proper cleaning, heat, and flux are required for leak-free joints |
| Flare fitting type | 5 8 id tube or 5 8 OD in certain specifications | Fuel lines and refrigeration lines | Do not mix flare and compression fittings unless they are rated for both |
| Approved certifications | UPC and NSF/ANSI | All potable water systems | Required under many local plumbing codes copper fittings requirements |
Follow a detailed checklist: confirm sizing, choose fittings for your pressure and temperature, verify certifications, and ensure proper installation. This approach helps you select copper fittings that perform well and comply with local regulations.
Copper Fittings: Installation Tips, Common Mistakes, And Maintenance
Preparation is key to avoiding failures. Leaks and rework can be greatly reduced by following basic copper-fitting installation tips. The way the system is assembled plays a major role in its long-term performance. This applies whether you are working with standard home supply piping or a 5/8 od copper tube for HVAC lines.
Cutting, deburring, and cleaning pipe ends before assembly
Begin with a proper tube cutter so you get a square cut. Once the pipe is cut, remove burrs and copper shavings from the end and the pipe ID. Clean the inner surface of fittings and the outer pipe end with a wire brush or emery cloth. This step is necessary for even flux and solder flow. If preparation is skipped, capillary action can be compromised and leaks may occur.
Using Flux, Heat, And Solder Properly While Avoiding Cold Joints And Leaks
Before assembling the joint, apply flux evenly to both mating surfaces. Then heat the fitting evenly. To distribute heat uniformly while soldering copper pipe, keep the flame moving. Feed solder to the heated seam and let capillary action pull it into the joint. You should avoid both overheating, which burns flux and weakens the joint, and underheating, which leads to cold joints and leaks.
Teflon Tape, Thread Sealants For Threaded Copper Fittings, And Avoiding Overtightening
On threaded copper fittings, apply Teflon tape or a compatible pipe thread sealant to the male threads. The tape should be wrapped clockwise so it stays in place as the fitting is threaded. Overtightening should be avoided because excessive torque can strip threads or crack fittings. For compression fittings, follow the manufacturer’s torque or turn count to avoid crushing ferrules.
Routine Inspection, Leak Prevention, And When To Replace Fittings
Regularly inspect copper fittings for signs of corrosion, pinhole leaks, and mechanical damage. Preventing leaks starts with correct assembly and continues through routine inspections. Fittings should be replaced when leaks continue after tightening, when corrosion is visible, or when a system is upgraded to current standards.
Frequent mistakes include poor cutting, skipped deburring and cleaning, confusion between OD and ID sizing, overheating while soldering, and ignoring manufacturer pressure limits. Reliable systems depend on following product instructions and keeping spare parts from trusted suppliers such as Mueller Industries or Viega.
Conclusion
Copper pipe fittings are valued in plumbing and HVAC because of their durability, heat tolerance, and long service life. The choice between soldered joints, compression fittings, push-to-connect options, flare connections, or brazed assemblies depends on the job’s specifics. It is critical to match both the size and type of fitting correctly. Be mindful of OD versus ID sizes, like 5/8, to avoid errors.
As you select copper fittings, make sure they satisfy local codes, pressure ratings, and material standards. For dependable support and quality products, work with a trusted wholesale distributor such as Installation Parts Supply. Such suppliers can provide compatibility charts and certification details that help guide product selection for plumbing projects.
Effective preparation and installation are key to a lasting system. Start by cutting, deburring, and cleaning the pipe ends. Then follow the recommended procedures for fluxing, heating, or mechanical assembly. Routine inspections and timely replacement of worn fittings are important for keeping the system safe and leak-free.
