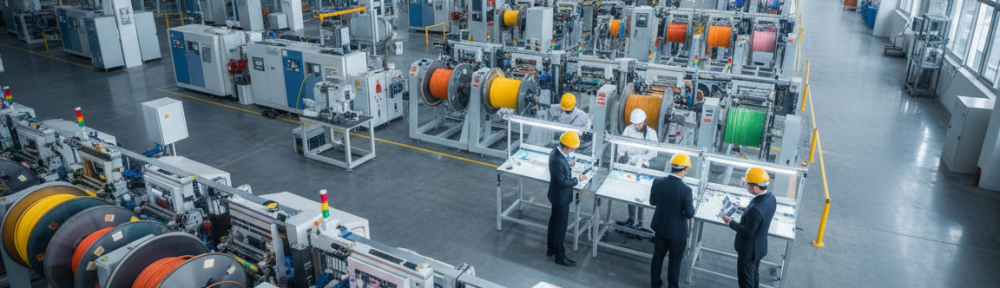

An FTTH Cable Production line is an integrated set of modules that turns fiber optic glass into ready-to-ship drop and distribution outputs with repeatable quality.
SZ stranding line
This introduction guides operations leaders, process engineers, procurement teams, and students in the U.S. who assess how industrial manufacturing equipment turns fine fiber into rugged cable assemblies for service and communication networks.
At its core, the full-chain objective is simple: safeguard the fiber, keep attenuation low, add strength for installation, and ship an output that holds up to inside and outside exposure.
Expert equipment means stable tension control, synchronized motion control, consistent process operating windows, and well-structured documentation for customer acceptance. This article helps match the right line configuration, materials, and testing plan to the intended product instead of purchasing machines first and fixing the process later.
Readers will trace steps such as fiber handling and preparation, buffering/coating, fiber organization and stranding, strength member integration, sheathing (outer-jacket extrusion), optional armor integration, and end-of-line testing and packaging.
Key points: A well-specified line reduces defects and keeps delivery schedules predictable. Lock in process alignment before equipment purchase to reduce time and cost.
How A Fiber Optic Cable Production Line Works Today
Where last-mile drop and distribution demands meet factory practice.
Today’s fiber manufacturing lines turn delicate glass into finished products used in U.S. broadband rollouts. Last-mile drop cable and FTTH drop demand drives high volumes, so manufacturers prioritize repeatable handling and standards compliance.
Core Modules & Material Flow
Material follows a clear sequence: pay-off → guiding and tensioning → secondary coating and coloring → organization/SZ stranding → strength member feed → jacketing (sheathing) → cooling/curing → take-up and in-line testing.
Modules And Outcomes
Stable fiber handling reduces attenuation and preserves data and communication integrity. Consistent jacketing helps installation and connector preparation. Inline monitoring flags loss events before reels leave the line.
- Indoor vs. outdoor: different jacket compounds and buffering.
- Armored designs add steel tape or wire for added crush and rodent resistance.
- Drop designs favor tight-buffered fibers and simplified connector prep.
Buyers should treat lines as modular systems. Factories add armoring or omit steps to match the product type. Output limits often come from curing and dimensional stability, not simply motor speed.
Define Your Product And Data Standards Before You Buy Equipment
Begin with a clear product map that specifies the cable type, core count, intended service environment, and target user scenarios. This early definition narrows which modules the line must include, from tight-buffer units to SZ stranding and jacket extrusion equipment.
Select Standards, Measurable Targets
Pick fiber standards such as ITU-T G.652D or bend-insensitive ITU-T G.657A1/A2 based on bend requirements and routing constraints. Record optical loss budgets, tensile strength, crush/bend limits, and environmental durability targets before choosing a supplier.
- Identify the precise product type and fiber/core count so you can define modules and control requirements.
- Specify attenuation (loss) budgets and mechanical strength targets to guide material choice.
- Define required materials (buffer polymers, jacket compounds) and confirm supplier availability in the U.S.
Data Standards And Traceability, Validation
Convert targets into factory information: recorded process variables, lot-level traceability, and required customer test reports for acceptance. Plan R&D pilot runs to validate settings and shorten scale-up time.
FTTH Cable Production Line
| Goal | Factory Impact | Common Action |
|---|---|---|
| Minimal attenuation | Tension and alignment control | In-line attenuation checks |
| Strong mechanical performance | Strength member selection | Integrate aramid or metal |
| Bend-tolerant performance | Selecting the fiber type | Use G.657 variants |
Build Quality Into The Optical Fiber: Core, Cladding, And Coating Essentials
High-quality optical performance starts in the glass, where core purity and cladding design define the boundaries for loss.
Core + cladding form the central layer structure: a solid, ultra-pure silica core transports light while lower-index cladding keeps it confined. This geometry is the foundation for low-loss transmission and stable optic behavior in finished cables.
From Preform To Drawn Glass Fiber
Manufacturing starts with preform laydown and consolidation. Moisture removal via a high-temperature furnace cuts defects that raise attenuation.
The draw step pulls glass into a micron-scale strand. Geometry control at this stage directly supports stable attenuation and predictable transmission performance. One blank can produce roughly 5 km of fiber, so process stability saves time and cost.
Primary Coating And Color Coding
The primary coating protects against scratches and handling damage; it is not the main tensile element. Color identification simplifies splicing, troubleshooting, and downstream fiber management.
- Preform consolidation: remove contaminants and moisture.
- Draw: control diameter and tension to keep loss low.
- Coating and color: protect and label each fiber.
| Layer Element | Role | Buyer check |
|---|---|---|
| Fiber core | Carry light with minimal attenuation | Specify purity and loss specs |
| Optical cladding | Confine light and control modal behavior | Verify index profile and geometry |
| Coating (primary) | Scratch protection; color ID | Verify coating adhesion and color coding |
FTTH Cable Production: Step-By-Step Line Setup From Buffering To Sheathing
A workable line setup moves each fiber from pay-off through buffering, stranding, and the outer jacket to a finished reel.
Secondary coating and fiber coloring stations apply dual-layer, UV-cured coatings (≈250 µm) and one-to-twelve channel color coding for traceability. Consistent UV cure rates and steady web tension reduce mix-ups and rework.
Buffering & Materials
Tight buffering (600–900 µm) protects handling and simplifies connector work. Selecting Hytrel, PVC, or LSZH affects flexibility, temperature range, and flame/smoke performance.
SZ Stranding & Organization
SZ stranding uses alternating lay to balance geometry and give cable flexibility. Servo control for up to 24 fibers keeps lay pitch consistent and lowers attenuation risk.
Strength Members And Jacketing
Aramid yarn is the standard tensile element; it provides pull strength without stressing the fibers during installation.
Outer jacket extrusion with PVC, PE, or LSZH follows. Speeds typically range 60–90 m/min and require tight OD and concentricity control.
Armoring, Control Points
Where crush or rodent resistance is needed, add steel tape or wire armor and control tension. Operators monitor tension, cure state, concentricity, OD, and cooling to keep quality stable.
| Process Step | Key Control | Typical Range |
|---|---|---|
| Secondary coating stage | UV cure plus tension | ≈250 µm, high curing consistency |
| Tight buffer | Material choice | 600–900 µm (Hytrel/PVC/LSZH) |
| Outer sheathing | OD and concentricity | 60–90 m/min |
Optimize Production Speed And Process Control With Modern Automation
As factories chase 24/7 output, synchronized controls and tension systems form the backbone of reliable manufacturing.
PLC, HMI And Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC/HMI platforms to synchronize modules, manage recipes, and log process data. Closed-loop tension control protects fiber during start, stop, and speed changes.
Fiber Coloring Machine
Match Speed To Curing & Dimensional Control
Line speed often caps where curing, cooling, or extrusion dimensional control cannot keep up. UV cure completeness, water trough stability, and chill capacity set the true ceiling.
Layout, Changeover & Procurement
Layout affects uptime: proper pay-off/take-up placement plus protected fiber paths reduce damage and shorten changeovers.
- Use quick-change tooling and documented setup steps to speed changeovers.
- When ordering equipment, specify industrial power (380 V AC ±10%) and typical load ≤55 kW.
- Require remote diagnostics, parts availability, and service response from the equipment company.
| Focus | Operational Benefit | Typical Standard |
|---|---|---|
| Module synchronization | Reduced scrap and repeatable runs | Siemens PLC/HMI |
| Tension control | Protects fiber; stable loss | Closed-loop, high accuracy |
| Layout/changeover | Shorter downtime | Quick-change tooling and staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Robust testing and clear quality control turn raw fiber into reliable, field-ready cable reels.
Start with optical verification. Inline attenuation testing and return loss checks confirm signal performance before reels leave the line.
Optical Checks, Signal Integrity
Attenuation testing is the main guardrail against performance complaints. Higher loss values typically point to handling damage, microbends, or contamination.
Return loss checks target reflections that affect sensitive links and tight network margins.
Mechanical & Environmental Validation
- Tensile pull tests verify strength members and installation safety.
- Crush and bend tests simulate real-world stresses during installation.
- Temperature cycling, moisture soak, and vibration tests de-risk outdoor and aerial routes.
| Validation Test | Why It’s Done | Typical Result |
|---|---|---|
| Attenuation | Measure attenuation per km | Pass/fail versus spec |
| Mechanical validation | Validate pull, crush, bend | Installation suitability rating |
| Environmental validation | Simulate real field conditions | Durability confirmation |
Traceability ties raw material lots, in-line data, and final test results to reel IDs. Correct reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.
Final Thoughts
A clear manufacturing plan ties product targets to the exact line modules and control limits needed for reliable output. Define the intended FTTH product, service environment, and measurable specs before selecting equipment or layout.
Fiber fundamentals (core, cladding, coating) establish the optical baseline. Careful handling upstream preserves signal integrity and keeps finished quality within acceptance limits.
Set buffering, organization/stranding, strength members, and jacket selection to match installation conditions. Use automation and closed-loop controls to maintain speed, reduce scrap, and keep delivery predictable in U.S. markets.
Operational discipline matters: implement comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels quickly. Next step: turn these points into a purchasing checklist (spec targets, utilities, layout, and acceptance tests) before you request quotes or trials.
